Chevrolet Cruze Repair Manual: Wipers and Washers
Specifications

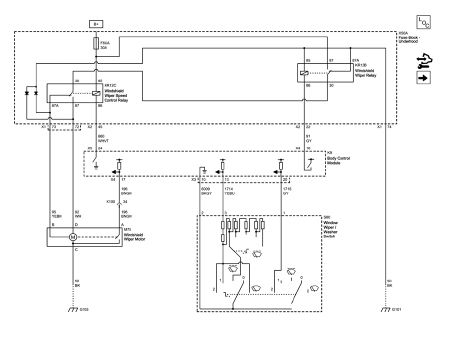

Wiper/Washer Schematics
Windshield Wiper and Washer Switch Replacement
Preliminary Procedure
Remove the steering column trim covers. Refer to Steering Column Lower Trim Cover Replacement.

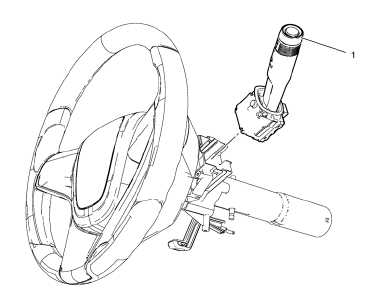

Windshield Wiper and Washer Switch
Procedure
- Disconnect any electrical connectors as needed.
- Release the plastic retaining tabs to remove the windshield wiper and washer switch.
- Windshield Washer Nozzle Hose Replacement
- Windshield Washer Pump Replacement
- Windshield Washer Pump Seal Replacement
- Windshield Wiper Arm Replacement
- Wiper/Washer System Description and Operation
